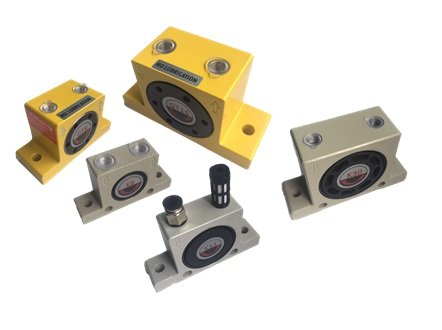

气动振动器
直接联系
上海巍申环保科技有限公司
上海
面议
上海巍申
气动振动器
3537
产品概述
工作原理
产品内部装有偏离心铜合金转子，压缩空气通入进去孔冲击，转子内正与负不平衡力矩的离心力产生振动，转子由二个高功率，预润滑的匹配有护圈轴承支持。使用寿命特别长的润滑脂采保证较长的二使用寿命。
Products from inside the heart with copper alloy rotor, compressed negative within the centrifugal force, moment by two rotor vibration air, the hole in the rotor imbalance with generation lubricated bearing retainer. Especially long use life by assure long grease second of high power, the match is life.
技术参数
| 型号 | 振动频率（次/分） | 离心振动力（N） | 空气消耗/分钟（Ltr） | Weight/重量 | ||||||
| 2 Bar 29 PSI | 4 Bar 58 PSI | 6 Bar 87 PSI | 2 Bar 29 PSI | 4 Bar 58 PSI | 6 Bar 87 PSI | 2 Bar 29 PSI | 4 Bar 58 PSI | 6 Bar 87 PSI | ||
| GT-8 | 36.000 | 42.000 | 46.000 | 990.00 | 2.060 | 2.910 | 0.48 | 0.75 | 1.52 | 255g |
| GT-10 | 27.000 | 35.000 | 37.000 | 840.00 | 1.390 | 2.400 | 0.48 | 0.75 | 1.52 | 265g |
| GT-13 | 26.000 | 30.000 | 33.000 | 1.400 | 2.440 | 3.730 | 1.25 | 2.10 | 2.80 | 582g |
| GT-16 | 17.000 | 21.500 | 24.000 | 1.220 | 2.090 | 3.160 | 1.25 | 2.10 | 2.80 | 615g |
| GT-20 | 17.000 | 20.000 | 23.000 | 2.170 | 4.040 | 5.520 | 1.88 | 3.15 | 4.65 | 1120g |
| GT-25 | 12.000 | 15.500 | 17.000 | 2.120 | 3.150 | 5.070 | 1.88 | 3.15 | 4.65 | 1205g |
| GT-30 | 13.000 | 14.000 | 16.000 | 3.380 | 5.430 | 7.540 | 3.38 | 5.25 | 7.55 | 2300g |
| GT-36 | 8.000 | 10.000 | 13.000 | 3.290 | 5.360 | 7.190 | 3.38 | 5.25 | 7.55 | 2550g |
外形尺寸
| 型号 | A | B | C | D | E | H | IN | OUT |
| GT-8 | 50 | 86 | 68 | 12 | 20 | Φ7 | G1/4" | G1/4" |
| GT-10 | ||||||||
| GT-13 | 65 | 113 | 90 | 16 | 24 | Φ9 | G1/4" | G1/4" |
| GT-16 | 27 | |||||||
| GT-20 | 80 | 128 | 104 | 16 | 33 | Φ9 | G1/4" | G1/4" |
| GT-25 | 38 | |||||||
| GT-30 | 100 | 160 | 130 | 20 | 44 | Φ11 | G3/8" | G3/8" |
| GT-36 | 50 | |||||||
| GT-40 | 120 | 194 | 152 | 24 | 83 | Φ17 | G3/8" | G3/8" |
