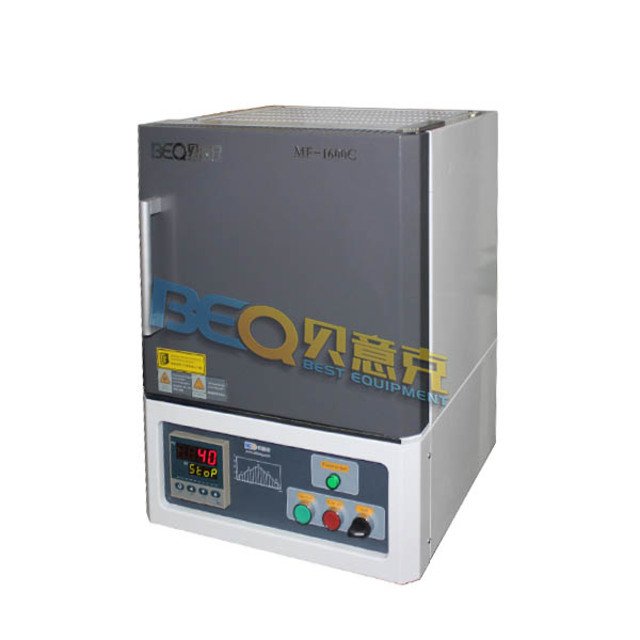

MF-1600C-II
直接联系
安徽贝意克设备技术有限公司
安徽
面议
贝意克
MF-1600C-II
2091
主要特点Main features
Heat insulating materials adopt Alumina fiber inorganic ones, which is formed with vacuum absorption, environmental protecting and energy saving.
保温材料采用真空吸附成型的氧化铝纤维无机材料，环保节能;
Furnace body is double air cooling structure to control furnace surface Temp. no more than 60℃ when furnace is heated into max. Temp.
炉体采用双层风冷结构，炉子烧到**温度时，壳体表面温度低于60℃
Made of various heat insulating materials to make furnace smaller and energy consumption less(electric consumption is only 25% of the same type furnace consumption)
采用多种保温材料组合制成，使炉子体积小，能量消耗少(耗电量是同类产品耗电量的四分之一)
技术参数Technical Parameters
Power 输入电源 | Power rated: 6KW (208-240V) 额定功率：6KW (208-240V) |
Voltage 电压 | Voltage rated: AC 208-240V 50/60HZ 额定电压：AC 208-240V 50/60HZ |
Working Temperature 工作温度 | Max. Temperature: 1600℃( 1 hr) **温度：1600℃ (1小时) Continuous working temperature: ≤1500℃ 持续工作温度：≤1500℃ Recommended Heating Rate: 1400℃ below ≤10℃/min, 1400-1600℃ ≤ 5℃/min, 1600℃ above ≤2℃/min 1400℃以下 ≤10℃/分, 1400-1600℃ ≤ 5℃/分, 1600℃以上 ≤2℃/分 |
Temperature Controller 控温方式 | PID automatic control and auto-tune function. 模糊PID控制和自整定调节 30 programmable segments for precise thermal processing. 智能化30段可编程控制 Built-in protection for the over-heated and broken thermocouple. 超温和断偶报警功能 |
Thermocouple 热电偶 | B type B型 |
Heating Elements 加热元件 | Silicon Molybdenum Rod (4pcs U shape) 硅钼棒（4只，U形） |
Temperature Accuracy 控温精度 | +/- 1℃ |
Dimensions 尺寸 | Chamber size(L*D*H): 200*300*200mm (12L) 腔体尺寸(长*深*高)：200*300*200mm (12L) Furnace size(L*W*H): 550*660*820mm 炉子尺寸(长*宽*高)：550*660*820mm |
Net Weight 净重 | 160kg |
Packing dimensions(L*W*H) 包装尺寸(长*宽*高) | 760*700*1140 mm（wooden case） 760*700*1140 mm（木箱） |
Gross weight 毛重 | 220kg |
Warranty 质保 | One year limited warranty with lifetime support (Such consumable parts as thermal insulation material, and O-rings are NOT supported by the warranty) 一年质保终身支持（消耗品如保温材料，O型圈不在质保范围内） |
Attention 注意事项 | Toxic or explosive gasses are not recommended for use with this furnace without necessary safety controls and supervision. Please put furnace into fume hood for better safety 没有安全控制和监督的情况下，不建议使用有毒或爆炸性气体。为了安全，请把炉子放在通风处。 Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. 在使用过程中炉膛表面可能出现细小裂纹。这是正常情况，裂纹可以用氧化铝涂层修复。 You shall place the sample in to a crucible. Never place sample on the chamber bottom directly. 应该把样品放进坩埚里。不要把样品直接放在腔底。 |
Compliance 认证 | CE Certified CE认证 All electric components ( >24V) are UL / MET / CSA certified 所有电气部件( >24V)都有UL / MET / CSA 认证 The furnace is ready to pass TUV(UL61010) or CSA certification at extra cost. 可付费进行TUV(UL61010)或CSA认证
|
