YF-YJ
直接联系
上海翊锋机械设备有限公司.
上海
面议

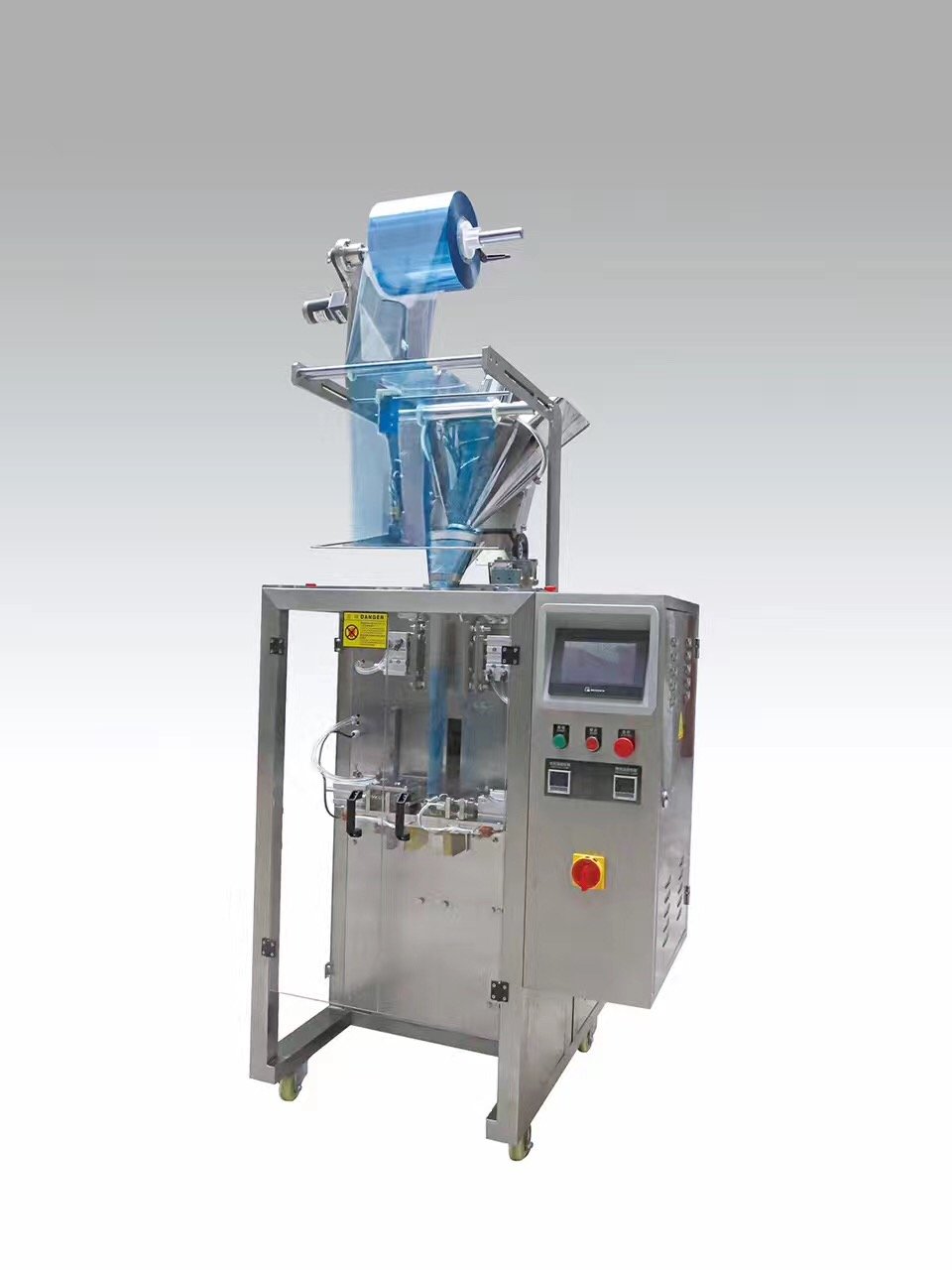

YF-YJ
3767
本机采用Feature: The machine adopts PLC control system, makes the performance more stable and easy adjustment.
伺服拉膜确保袋长准确，制袋背封边美观。
Feature: The sealing cutting form of the finish product is sawtooth cutting,flat cutting and circular bead cutting type, makes it more unique and novel.
型号 | MODEL NO. | YF-YJ |
包装速度(包/分) | Speed（bag/min） | 20-60 |
制袋尺寸(mm) | Bag Size(mm) | L:50-200 W:20-100 |
卷筒纸**外径(mm) | Max Outside Diameter of Rolling Film(mm) | ≤Φ450 |
薄膜**宽度(mm) | Max Width of Packing Film(mm) | 200 |
包装膜厚度(mm) | Packing Film Thickness(mm) | 0.05-0.10 |
包装形式 | Packing Type | 背封圆角平切 Circular bead truncation Back-side-seal |
总功率(kw) | Total Power(kw) | 3.5 |
使用电压(v) | Working Voltage(v) | 220V/50HZ |
计量范围(ml) | Counting Range(ml) | 5-15 |
外形尺寸(mm) | Outside Dimension(mm) | 1200 x 950 x 2350 |
整机重量(kg) | Gross Weight(kg) | 450 |
耗气量(m3/min) | Air Consumption(m3/min) | 0.23 |
