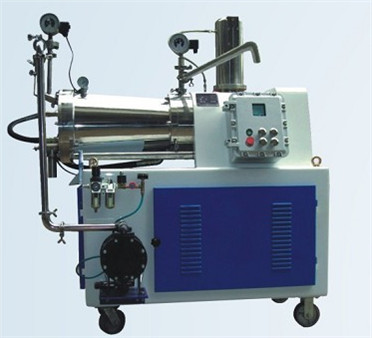

KFM25L-120L大容量卧式砂磨机

应用/Applications

◆平版印刷油墨/Lithographic inks                    ◆UV印刷油墨/UV printing inks

◆汽车漆/Automotive paint                                     ◆色浆/Color paste

◆网版印刷油墨/Screen Printing Inks                   ◆图片印刷油墨/Photo printing ink

◆电子油墨/Electronic ink

特点/Features

◆机身随处可移，几乎零震动，噪音极低                                 ◆研磨腔锥型构造，产品在高黏度下流动畅通无阻

◆采用螺旋输送器，加快研磨介质、朝离心及轴向方向运动    ◆高精度间隙隔离具有自动清洗功能

◆研磨腔锥型构造，研磨腔盖可开启，便于清洗换色               ◆隔离间隙冷却、前端冷却、定子冷却、机封冷却

◆研磨腔体和分散叶均采用耐磨材料，生产出高质不变色的产品

◆工作压力和温度，冷却水压和温度实行自动监控，可实现全自动作业

◆Body can be moved anywhere, almost zero vibration, low noise

◆Conical grinding chamber constructed to ensure high viscosity products at the free flow

◆Spiral conveyor speeds grinding media toward centrifugal and axial direction

◆Precision gap separation with automatic cleaning function

◆Conical grinding chamber and grinding chamber cover can be opened for easy cleaning and color changing

◆Isolation gap cooling, front-end cooling, stator cooling and mechanical seal cooling

◆Grinding chamber and dispersing leaves are made of wear-resistant material to produce high-quality products that do

    not change color

◆Working pressure and temperature, cooling water pressure and temperature can be monitored automatically enables fully

automatic operation

标准配置/Standard Configuration

◆双重机械密封/Double mechanical seal

◆精密进口轴承/Imported precision bearings

◆隔离间隙冷却、前端冷却、定子冷却/Isolation gap cooling, front-end cooling, stator cooling

◆自动防呆压力装置（工作压力、水压）

    Automatic Foolproof pressure device (working pressure, water pressure)

◆自动防呆温度装置（工作温度、水温）

    Automatic Foolproof Temperature Devices (working temperature, water temperature)

◆防爆装置/Explosion-proof device

◆送料泵浦（齿轮泵/隔膜泵）/Feeding pump (gear pump / diaphragm pump)

技术数据/Technical Data

型号/Model                       KFM-25LA                KFM-60LA

容量/Capacity （L）                 25                      60

主机功率/Motor Power（KW）          22                       37

冷却水/Cooling Water（m3/h）          3000                     3000

空气压力/Air Pressure Bar                4-8                   4-8

产品流速/Product Flow Rate（L/h）         200-500                300-1200

研磨介质/Grinding Media （Φmm）      0.6-2.0                      0.6-2.0

净重/Weight（kg）                         1000                    1400
