KZL系列


一、主要用途（The main purpose）：
快速整粒机机适用于中西药、食品、化工颜料及饲料等行业中颗粒的破碎及整粒。将造粒后形状及规格各异的颗粒经本机高速旋转的刀片组合切割，经网板排出，便可有了形状及规格基本一致的颗粒。
The fast granulator is suitable for crushing and granulating granules in Chinese and Western medicine, food, chemical pigments and feed industries. After granulation, the granules with different shapes and specifications are cut by the high-speed rotating blades of this machine,
and discharged through the screen plate, and then particles with basically the same shape and specifications can be obtained.
二、工作原理（working principle）：
电机动力直接传动至制粒网旋转，制粒刀固定，原料由加料口加入，物料进入制粒机腔，接触高速旋转的制粒网，产生离心力，固定制粒刀磨擦破碎较大的颗粒，成品通过筛孔向外筛出，完成整粒作用。
The power of the motor is directly driven to the rotation of the granulating net, the granulating knife is fixed, the raw materials are added from the feeding port, the material enters the cavity of the granulating machine, and it contacts the high-speed rotating granulating net to generate centrifugal force, and the fixed granulating knife rubs and breaks larger particles. The finished product is screened out through the sieve holes to complete the granulation function.
二、分类特点（ Classification characteristics）：

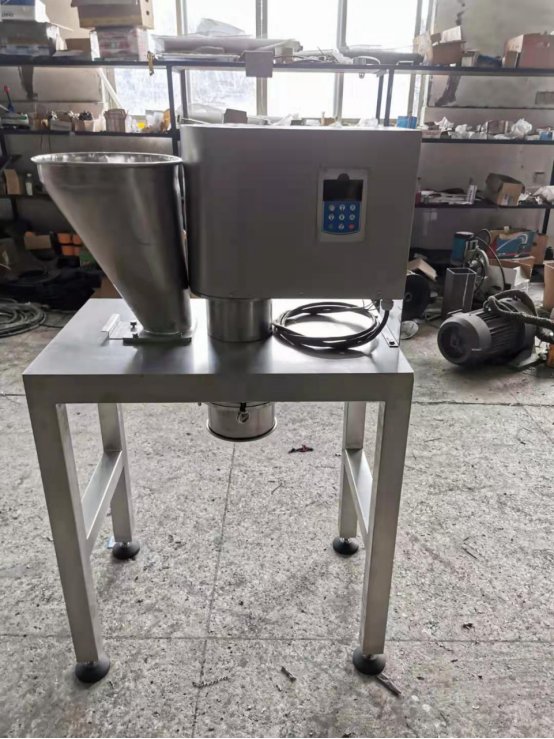

FZ机架式：本机型适合粗细不均物料的粉碎及整粒。外形美观，移动方便，操作维护简单。
FZ frame type: This model is suitable for crushing and granulating materials with uneven thickness. Beautiful appearance, easy to move, simple operation and maintenance.

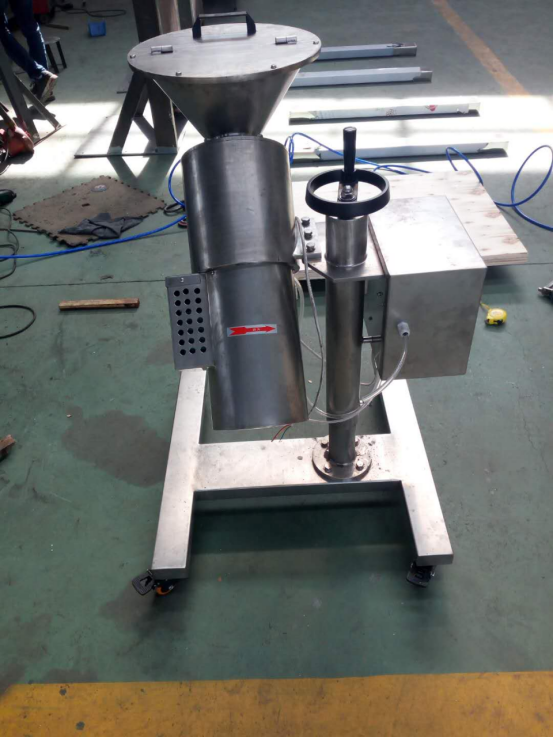

KZL斜式：本机为传统机型，适合比重较轻物料的整粒。适用于单机小批量生产。
KZL inclined type: This machine is a traditional model, suitable for the whole grain of lighter materials. Suitable for single machine small batch production.
KXL管道式：管道式连接，可选择单机或联机使用，联机使用时无尘。
KXL pipe type: pipe type connection, stand-alone or online use can be selected, and there is no dust when used online.
四、技术参数：
