J41W-16P法兰截止阀
直接联系
温州龙江阀门管件有限公司
浙江
面议
龙江阀门
J41W-16P法兰截止阀
681

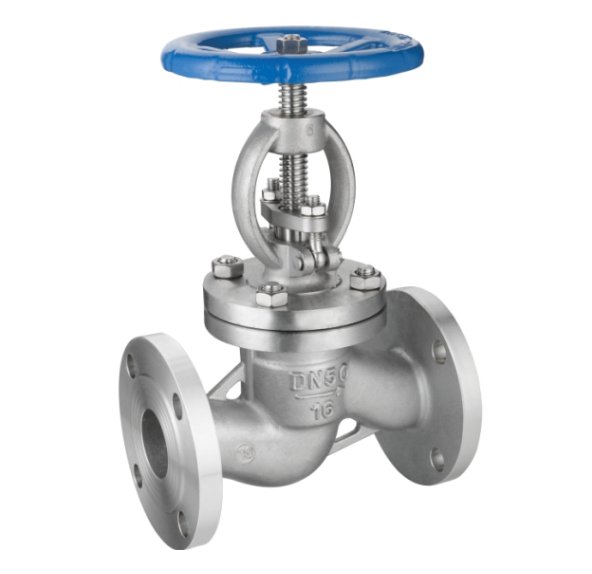

J41W-16P法兰截止阀
材料列表
| 零件名称 | 材质 | |||||
| P | P3 | P8 | R | R3 | R8 | |
| 阀体 | ZG1Cr18Ni9Ti | CF3 | CF8 | ZG1Cr18Ni12Mo2Ti | CF3M | CF8M |
| 闸板 | ZG1Cr18Ni9Ti | CF3 | CF8 | ZG1Cr18Ni12Mo2Ti | CF3M | CF8M |
| 阀盖 | ZG1Cr18Ni9Ti | CF3 | CF8 | ZG1Cr18Ni12Mo2Ti | CF3M | CF8M |
| 阀杆 | 1Cr18Ni9Ti | 304L | 304 | 1Cr18Ni12Mo2Ti | 316L | 316 |
| 填料 | 柔性石墨 | |||||
| 阀杆螺母 | 铝青铜 | |||||
| 手轮 | 可锻铸铁 | |||||
| 适用介质 | 硝酸类 | 醋酸类 | ||||
| 适用温度 | ≤200℃ | |||||

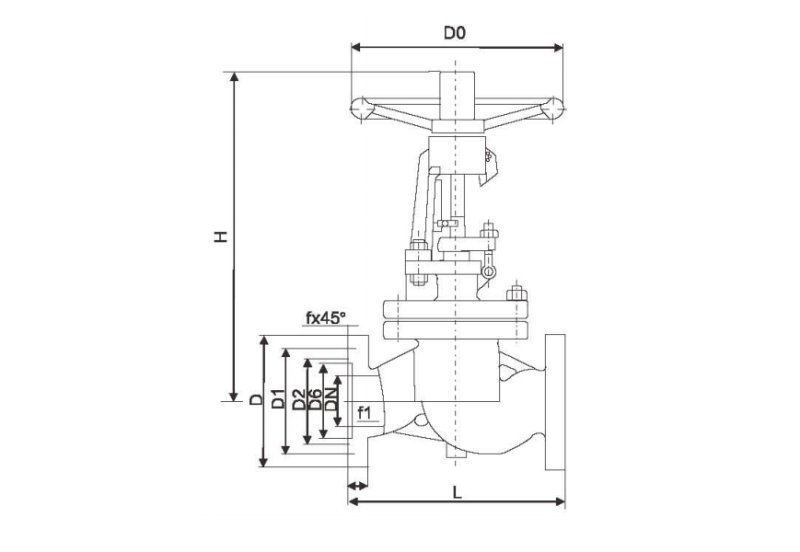

外形尺寸
| DN(mm) | 连接尺寸(mm) | 外形尺寸(mm) | |||||||||
| L | D | D1 | D2 | f | b | Z-Φd | H手 | D0 | H电 | 电动装置 | |
| J41W-16P(P3、P8、R、R3、R8) J941W-16P(P3、P8、R、R3、R8) | |||||||||||
| 10 | 130 | 90 | 60 | 40 | 2 | 14 | 4-14 | 198 | 120 | - | - |
| 15 | 130 | 95 | 65 | 45 | 2 | 14 | 4-14 | 218 | 120 | - | - |
| 20 | 150 | 105 | 75 | 55 | 2 | 16 | 4-14 | 258 | 140 | - | - |
| 25 | 160 | 115 | 85 | 65 | 2 | 16 | 4-14 | 275 | 160 | - | - |
| 32 | 180 | 135 | 100 | 78 | 2 | 18 | 4-18 | 280 | 180 | - | - |
| 40 | 200 | 145 | 110 | 85 | 3 | 18 | 4-18 | 330 | 200 | - | - |
| 50 | 230 | 160 | 125 | 100 | 3 | 20 | 4-18 | 350 | 220 | 645 | DZW10I |
| 65 | 290 | 180 | 145 | 120 | 3 | 20 | 4-18 | 400 | 240 | 690 | DZW10I |
| 80 | 310 | 195 | 160 | 135 | 3 | 20 | 4-18 | 455 | 280 | 715 | DZW10 |
| 100 | 350 | 215 | 180 | 155 | 3 | 22 | 8-18 | 475 | 320 | 770 | DZW15 |
| 125 | 400 | 245 | 210 | 185 | 3 | 22 | 8-18 | 490 | 350 | 780 | DZW20 |
| 150 | 480 | 280 | 240 | 210 | 3 | 24 | 8-18 | 510 | 400 | 810 | DZW30 |
| 200 | 600 | 335 | 295 | 265 | 3 | 24 | 8-23 | 710 | 400 | 967 | DZW45 |
| 250 | 650 | 405 | 355 | 320 | 3 | 26 | 12-25 | 786 | 450 | 1143 | DZW60 |
| 300 | 750 | 460 | 410 | 375 | 4 | 28 | 12-25 | 925 | 500 | 1292 | DZW90 |
外形尺寸
| DN(mm) | 连接尺寸(mm) | 外形尺寸(mm) | |||||||||
| L | D | D1 | D2 | f | b | Z-Φd | H手 | D0 | H电 | 电动装置 | |
| J41W-25P(P3、P8、R、R3、R8) J941W-25P(P3、P8、R、R3、R8) | |||||||||||
| 10 | 130 | 90 | 60 | 40 | 2 | 14 | 4-14 | 198 | 120 | - | - |
| 15 | 130 | 95 | 65 | 45 | 2 | 14 | 4-14 | 218 | 120 | - | - |
| 20 | 150 | 105 | 75 | 55 | 2 | 16 | 4-14 | 258 | 140 | - | - |
| 25 | 160 | 115 | 85 | 65 | 2 | 16 | 4-14 | 275 | 160 | - | - |
| 32 | 180 | 135 | 100 | 78 | 3 | 18 | 4-18 | 280 | 180 | - | - |
| 40 | 200 | 145 | 110 | 85 | 3 | 18 | 4-18 | 330 | 220 | - | - |
| 50 | 230 | 160 | 125 | 100 | 3 | 20 | 4-18 | 350 | 240 | 645 | DZW10I |
| 65 | 290 | 180 | 145 | 120 | 3 | 22 | 8-18 | 400 | 280 | 690 | DZW10I |
| 80 | 310 | 195 | 160 | 135 | 3 | 24 | 8-18 | 455 | 280 | 715 | DZW15 |
| 100 | 350 | 230 | 190 | 160 | 3 | 24 | 8-22 | 475 | 320 | 770 | DZW20 |
| 125 | 400 | 270 | 220 | 188 | 3 | 26 | 8-26 | 490 | 360 | 780 | DZW30 |
| 150 | 480 | 300 | 250 | 218 | 3 | 28 | 8-26 | 510 | 400 | 810 | DZW45 |
| 200 | 600 | 355 | 310 | 278 | 3 | 30 | 12-26 | 710 | 400 | 967 | DZW60 |
| 250 | 650 | 425 | 370 | 332 | 3 | 32 | 12-30 | 786 | 450 | 1143 | DZW90 |
| 300 | 750 | 485 | 430 | 390 | 3 | 34 | 16-30 | 925 | 500 | 1292 | DZW120 |
