体积小,重量轻 (21 kg）,结构紧凑

易于携带

可采用SD卡存储数据

方便数据存储及管理

提供9种语言的控制面板

操作简便,国际通用

Test Method

Vacuum and Sniffing

Detectable gases

4He, 3He, H2

Min detectable leak – vacuum

mbar l/s

≤ 5 · 10-12

Min detectable leak – sniffing

mbar l/s

≤ 1 · 10-7

Pumping speed for He

l/s

1.1

Maximum inlet test pressure

hPa

15

Backing pump type

type

Diaphragm pump

Backing Pump Capacity

m3/h

1.7

Communications Interface

RS232 + Analog

Start-up time (20° C)

min

<2

Operating Temp

celsius

10° – 40° C

Dimensions

mm

350 x 245 x 414

Weight

kg

21

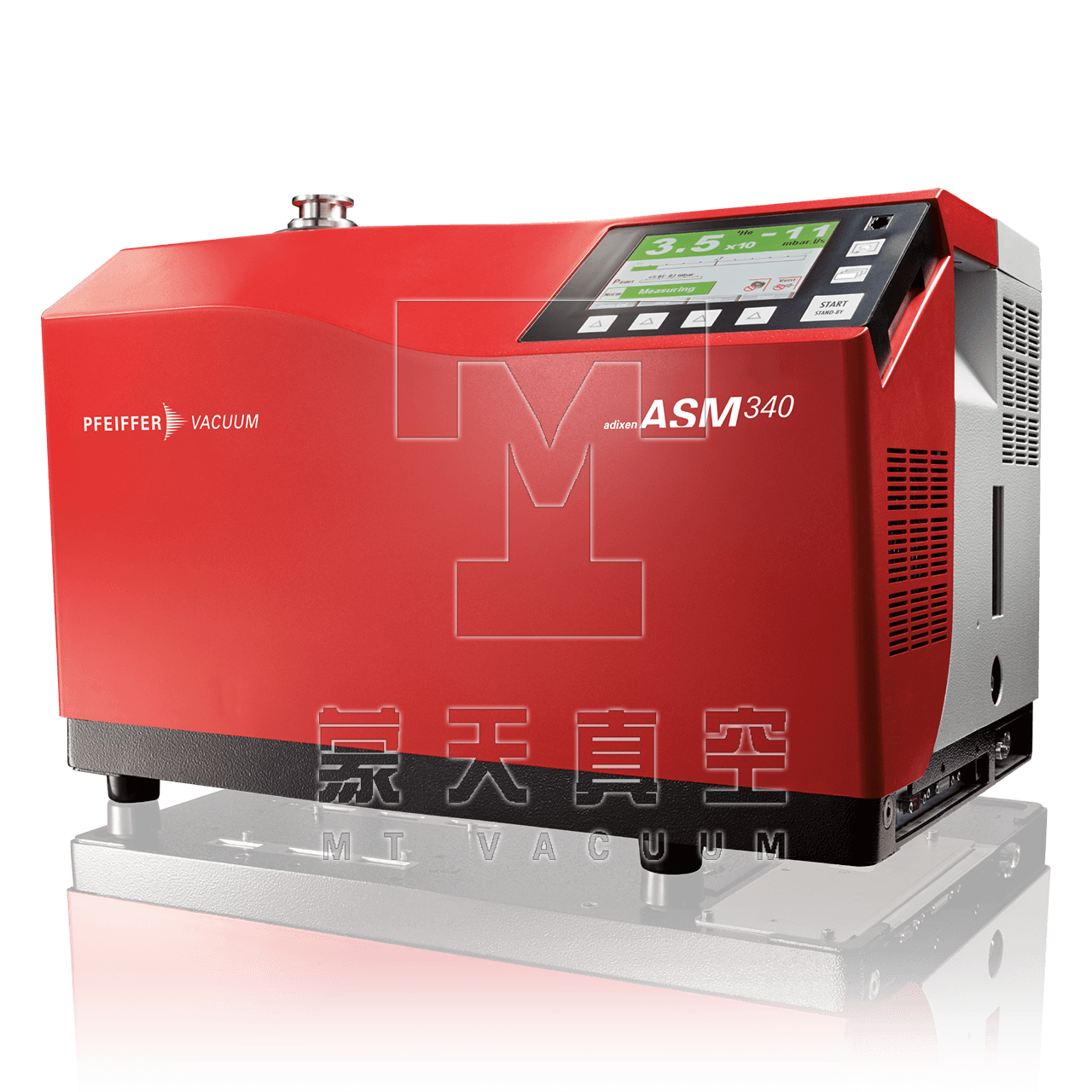

进气口压力达到100 hPa 即可测漏

应用范围广

可采用真空法和吸枪模式进行氦气和氢气泄漏检测

操作灵活

取代旧机型并且完全兼容

可兼容原有型号的配件

高性能真空系统

在其同类产品中测试时间*快

干式型号 340 D 版本无油

适用于洁净制程

Test Method

Vacuum & Sniffing

Vacuum & Sniffing

Vacuum & Sniffing

Detectable gases

4He, 3He, H2

4He, 3He, H2

4He, 3He, H2

Min detectable leak – vacuum

mbar l/s

≤ 5 · 10-12

≤ 5 · 10-12

≤ 5 · 10-12

Min detectable leak – sniffing

mbar l/s

≤ 5 · 10-9

≤ 5 · 10-9

≤ 5 · 10-9

Pumping speed for He

l/s

2.5

2.5

2.5

Maximum inlet test pressure

hPa

25

25

25

Backing pump type

type

 Rotary vane pump

Diaphragm pump

None

Backing Pump Capacity

m3/h

15

3.4

–

Communications Interface

RS232, Ethernet, Bluetooth

Start-up time (20° C)

min

<3

<3

<3

Operating Temp

celsius

0° to 45°

0° to 35°

0° to 40°

Dimensions

mm

393 x 547 x 375

393 x 547 x 375

393 x 547 x 375

Weight

kg

56

45

32

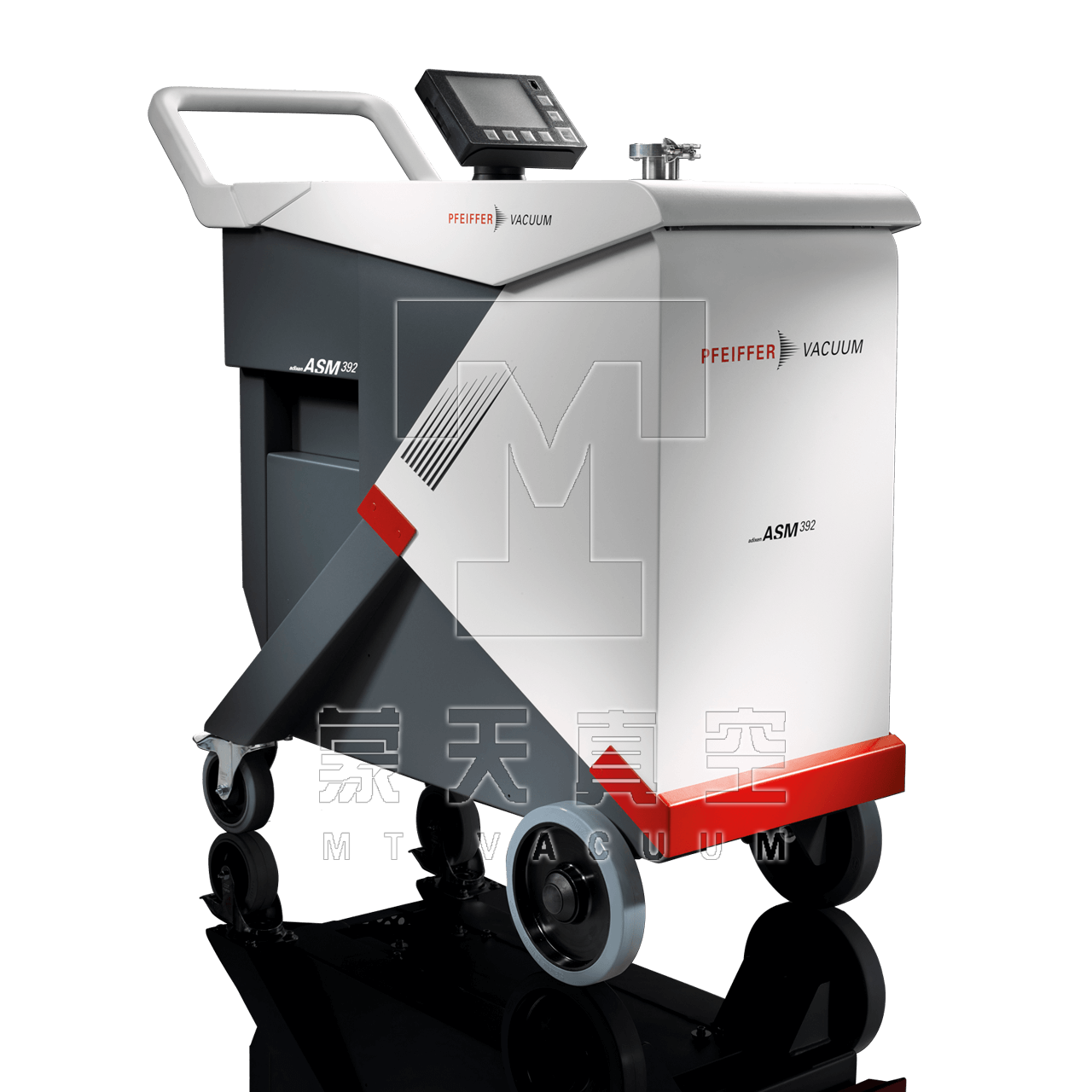

可操作性高、设计紧凑

即使在狭小的空间中也可轻松进入测试区域

在同级别前级泵中具有**抽速 (35 m3/h） 以及高氦气抽速 (10 或 25 l/s）

快速、准确、可靠的泄漏检测

集成置物空间,可存放工具、真空波纹管和配件等

便于配件使用及管理

Test Method

Vacuum & Sniffing

Detectable gases

4He,3He,H2

Min detectable leak – vacuum

mbar l/s

≤ 1 · 10-12

Min detectable leak – sniffing

mbar l/s

≤ 1 · 10-8

Pumping speed for He

l/s

25

Maximum inlet test pressure

hPa

20

Backing pump type

type

friction-less ACP pump

Backing Pump Capacity

m3/h

35

Communications Interface

RS232, Digital, Analog

Start-up time (20° C)

min

<2

Operating Temp

celsius

10° to 35°

Dimensions

mm

1072 x 454 x 1025

Weight

kg

130

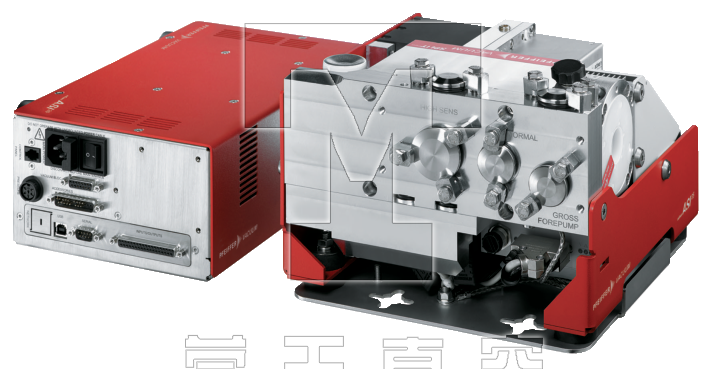

紧凑、坚固、模块化系统

可任意角度安装集成于系统中

可通过 PC 或 PLC 进行操作

无需操作面板,节省成本

通讯接口多样

方便兼容各种终端设备

Test Method

Vacuum & Sniffing

Detectable gases

4He,3He, H2

Min detectable leak – vacuum

mbar l/s

≤ 5 · 10-12

Min detectable leak – sniffing

mbar l/s

≤ 1.5 · 10-8

Pumping speed for He

l/s

6

Maximum inlet test pressure

hPa

18

Backing pump type

type

None

Backing Pump Capacity

m3/h

Communications Interface

RS232,  Digital, Analog, USB

Start-up time (20° C)

min

<3

Operating Temp

celsius

10° to 45°

Dimensions

mm

279 x 264 x 197;216 x 317 x 111;241 x 54 x 133

Weight

kg

15+5+1.3
