光谱带宽

2 nm

杂散光(S.L.)

< 1.0%T 198 nm (KCl)、220 nm 时<0.05%T(NaI)、340 nm 时<0.03%T (NaNO2 )

接收器类

双硅光电二极管

波长准确度

±0.5 nm

波长范围（数据，例190nm-1100nm）

190-1100 nm

产品规格

-

基线平坦度

±0.002A

室

8-position cell changer (standard)

Also accommodates (optional):

4-position cell changer (long path cells)

Peltier thermostatted cell holder (20-60 °C)

Sipper accessory

Fiber optic probe coupler

连接

Single USB-A supports flash memory devices for method and data storage

Duplex USB-A on side supports connection to a Windows™ computer running optional remote control software， keyboard， mouse

Export data to network or PC via USB， Ethernet， or Wi-Fi USB adaptor， available

Print via USB， Ethernet or Wi-Fi USB adaptor available

描述

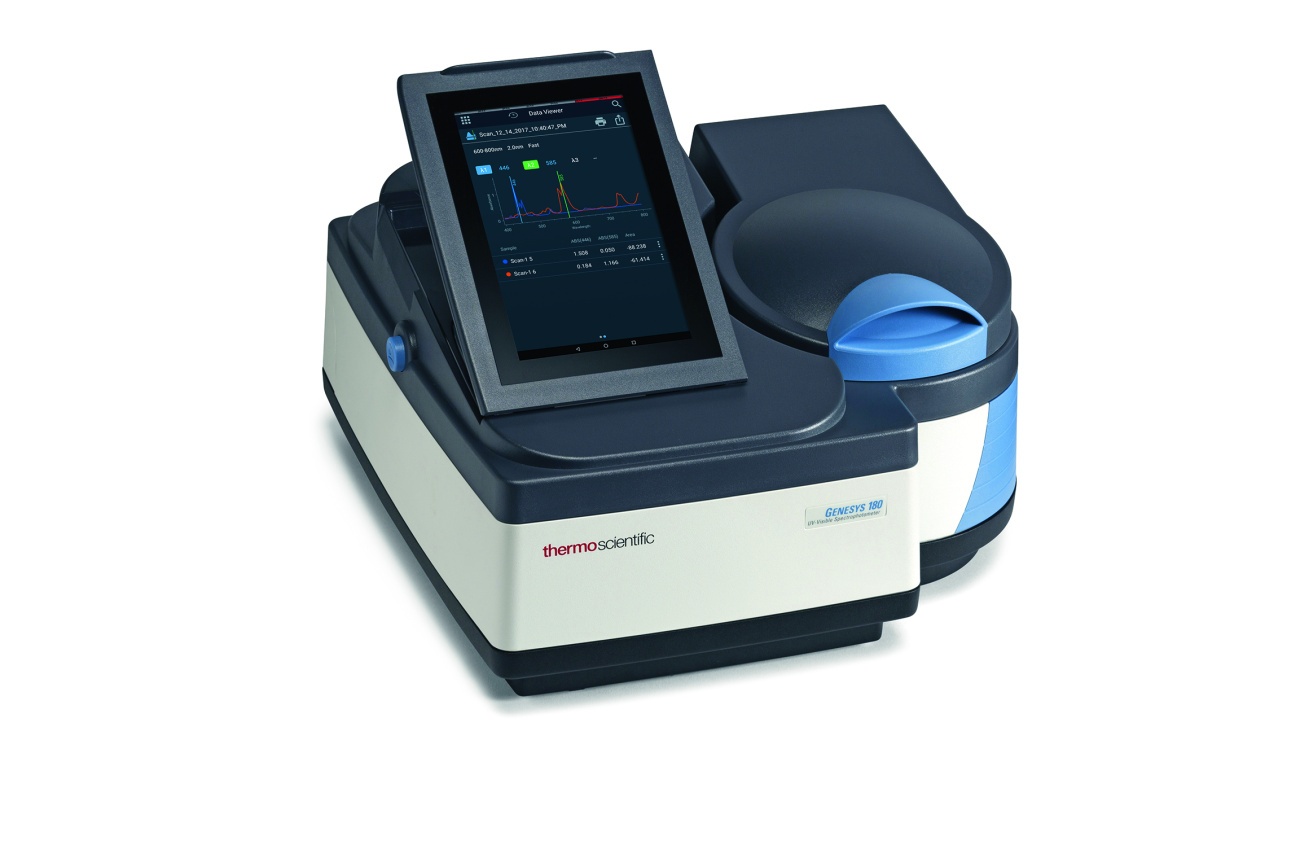

GENESYS 180 UV-Vis Spectrophotometer with UK Power Cable

检测器类型

Dual Silicon Photodiodes

Dimensions (L x W x H)

35.5 x 38.5 x 19.5 cm

显示

7-in. color touchscreen， tiltable， high definition， 800 × 1280 pixels

漂移

(At 500 nm after 1 hour warmup)<0.0005A/Hr

Electrical Requirements

External AC to DC converter. Voltage and Frequency (Hz) selected automatically， 100–240 volts， 50–60 Hz.

键盘

Touchscreen

灯

Xenon Flash Lamp (>5 years typical， 3 years guaranteed)

噪声

(RMS at 500 nm 60 consecutive measurements)

≤0.00020A at 0A at 260 and 500 nm

≤0.00030A at 1A at 260 and 500 nm

≤0.00040A at 2A at 260 and 500 nm

光学设计

Double Beam 双光束

Photometric Accuracy Instrument

±0.002A at 0.5A

±0.004A at 1.0A

±0.008A at 2.0A

Photometric Display

–3A to +5A

Photometric Range

–2A to +3.5A

Photometric Repeatability

±0.001A at 1A measured at 1.0A at 546 nm

Printer

Snap-on printer available

光谱带宽

2 nm

杂散光

< 1.0%T 198 nm (KCl) ，<0.05%T at 220 nm (NaI)， <0.03%T at 340 nm (NaNO2)

波长精度

±0.5 nm

Wavelength Data Interval

0.1 nm， 0.2 nm， 0.5 nm， 1 nm， 2 nm， 5 nm

波长范围

190 nm – 1100 nm

波长重复性

±0.2 nm

波长扫描速度

Slow， medium and fast - up to 1600 nm/min

重量（公制）

7.5 kg

Warranty

2 years standard with 1 year extension upon registration of the instrument with Thermo Fisher Scientific within 6 months of purchasev
