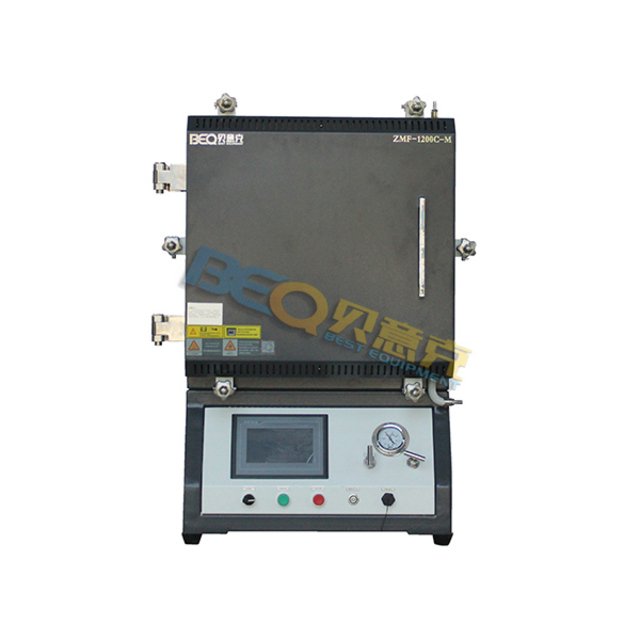

ZMF-1200C-M
直接联系
安徽贝意克设备技术有限公司
安徽
面议
贝意克
ZMF-1200C-M
3882
Main features
主要特点
Heat insulating materials adopt Alumina fiber inorganic ones, which is formed with vacuum absorption, environmental protecting and energy saving.
保温材料采用真空吸附成型的氧化铝纤维无机材料，环保节能;
Furnace body is double air cooling structure to control furnace surface Temp. no more than 60℃ when furnace is heated into max. Temp.
炉体采用双层风冷结构，炉子烧到**温度时，壳体表面温度低于60℃
Furnace body use super-light high alumina fiber material, with the features of low hot melt, flexible Temp. control and energy saving, etc.
炉体采用超轻质高铝纤维材料，具有热熔小，温度升降控制灵活、节能等特点。
Mechanical pump and vacuum unit are optional according to vacuum degree requirement, very suitable for test and small batch production.
设备可根据真空度的需要分别选用机械泵或真空机组，非常适合于试验和小批量生产之用。
Technical Parameters
技术参数
Power 输入电源 | Power rated: 4.2KW (380±10%V) 额定功率：4.2KW (380±10%V) |
Voltage 电压 | Voltage rated: AC 380±10%V 50/60Hz 额定电压： AC 380±10%V 50/60Hz |
Working Temperature 工作温度 | Max. Temperature: 1200℃ **温度：1200℃ Continuous working temperature: ≤1000℃ 持续工作温度：≤1000℃ Recommended Heating Rate: 15°C /min 推荐升温速率：15℃/分 |
外观 Surface | 主体白色 Mainly white |
Temperature Controller 控温方式 | PID automatic control and auto-tune function. 模糊PID控制和自整定调节 30 programmable segments for precise thermal processing. 智能化30段可编程控制 Built-in protection for the over-heated and broken thermocouple. 超温和断偶报警功能 |
Thermocouple 热电偶 | K type K型 |
Heating Elements 加热元件 | Fe-Cr-Al Alloy doped by Mo 电阻丝（掺钼铁铬铝合金） |
Temperature Accuracy 控温精度 | +/- 1℃ |
Dimensions 尺寸 | Chamber size(L*D*H): 250x300x250mm(18L) 腔体尺寸(长*深*高)：250x300x250mm(18L) Furnace size(L*W*H): 620x610x1070mm 炉子尺寸(长*宽*高)：620x610x1070mm |
Cold ultimate vacuum 冷态极限真空 | ≤100Pa |
Warranty 质保 | One year limited warranty with lifetime support (Such consumable parts as processing tubes, and O-rings are NOT supported by the warranty) 一年质保终身支持（消耗品如O型圈不在质保范围内） |
Attention 注意事项 | The equipment is not sealed, and can not be put into toxic, harmful, inflammable and explosive gas. Can add the inlet port to pass through the inert gas or oxygen. 此设备腔体不密封，不能通入有毒有害，易燃易爆气体。可以加装进气接头，通惰性气体或者氧气 Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. 在使用过程中炉膛表面可能出现细小裂纹。这是正常情况，裂纹可以用氧化铝涂层修复。 You shall place the sample in to a crucible. Never place sample on the chamber bottom directly. 应该把样品放进坩埚里。不要把样品直接放在腔底。 |
Compliance 认证 | CE Certified CE认证 All electric components ( >24V) are UL / MET / CSA certified 所有电气部件( >24V)都有UL / MET / CSA 认证 The furnace is ready to pass TUV(UL61010) or CSA certification at extra cost. 可付费进行TUV(UL61010)或CSA认证
|
Operation instructions 操作指导 | Click to download the operating manual 点击下载说明书
|
