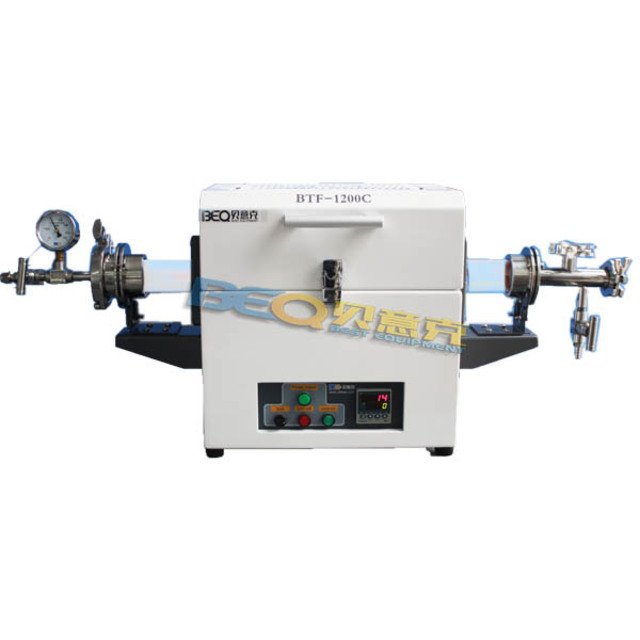

迷你型开启式真空管式炉（BTF-1200C-S）/Small Open Type Tube Furnace

主要特点

Small in size

炉体小巧

The stainless steel vacuum flanges with valves and quartz tube are included for immediate use.

标配不锈钢带阀真空法兰和石英管

Can work under vacuum or flowing gas atmospheres

可在真空或气氛下工作

Chamber veined with 12 sets of resistance wire, achieve uniform tem. field and longer constance zone.

上下12组加热器密布于圆形炉膛内，温场均匀，恒温区超长

Equipped with support frame for flange, reduce the load of tube body

配置法兰支撑架，减小炉体承重

Open type make convenient for operation

开启式结构操作简洁

技术参数

Power

输入电源

Furnace input 220V. 50/60 HZ

输入电压 220V 50/60 HZ

Working Temperature

工作温度

Max. Temperature: 1200℃ (< 1 hr)

**温度：1200℃(< 1 hr)

Continuous working temperature: 1100℃

持续工作温度：1100℃

Max. Heating Rate: 80℃/min

*快升温速率：80℃/min

Heating Zone

加热区

Heating Zone Length:9.05" (230mm)

加热区长度：9.05”(230mm）

Constant Temperature Zone: 3.93 " (100mm. +/-1℃ )

恒温区长度：3.93”(100mm)

Temperature Controller

控温方式

PID automatic control and auto-tune function.

模糊PID控制和自整定调节

30 programmable segments for precise thermal processing.

智能化30段可编程控制

Built-in protection for the over-heated and broken thermocouple.

超温和断偶报警功能

Temperature Accuracy: +/- 1℃.

控温精度：+/- 1℃

K type thermocouple.

K型热电偶

Heating Elements

加热元件

Fe-Cr-Al Alloy doped by Mo

电阻丝（掺钼铁铬铝合金）

Processing Tube

炉管

Fused quartz tube: 25/50 OD x 600 mm Length is included（optional）

石英管：25/50（外径）*600（长）mm（管径可选）

Two fibrous ceramic tube blocks are included for blocking heat radiation generated from tube center. (Ceramic blocks must be fully inserted into the furnace chamber before heating).

两个氧化铝管堵阻挡管中心产生的热辐射（氧化铝管堵必须在加热前塞进炉膛）

quartz boat (optional，placed in furnace tube to fill the samples )

石英舟（可选配，放置炉管内盛样）

Vacuum Flange

真空法兰

KF25 quick clamp flange

两端为KF25快速卡箍法兰

Vacuum Pressure

真空压力

133torr can be achieved by mechanical pump

机械泵可达1pa

10^-5 torr can be reached by molecular pump

分子泵可达10^-5torr（10^-3pa）

Please clik the picture below to order vacumm pump

点击下列图片订购真空泵

Dimensions

尺寸

350*290*345mm（L*W*H without tube & flange）

Net weight设备净重

18kgs

Warranty

质保

One year limited warranty with lifetime support (Consumable parts such as processing tubes, and O-rings are not covered by the warranty, please order replacements at related products below.)

一年质保终身支持（消耗品如炉管，O型圈不在质保范围内，可点击下方订购更换件）

Compliance

认证

CE Certified

CE认证

All electric components ( >24V) are UL / MET / CSA certified

所电器元件（>24V）符合UL/MET/CSA认证标准

The furnace is ready to pass TUV(UL61010) or CSA certification at extra cost.（please click marks below to learn details )

可付费进行TUV(UL61010)或者CSA认证（点击下方标志了解更多详情）
