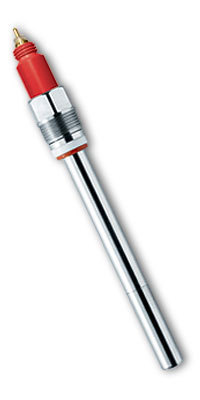

METTLER TOLEDO’s InPro6900i is the intelligent counterpart for the InPro6900， the proven standard especially in food and beverage applications for low oxygen concentrations. The special electrode design with guard ring around the cathode together with the larger surface of the cathode allows for measurement down to 1ppb dissolved oxygen.
Thanks to the integrated ISM technologywith Plug and Measure capability makes installation much easier and offers new possibilities for maintenance planning thanks automated self diagnosis and asset management. Together with the iSense Asset Suitealways one step ahead.
规格 - InPro 6900(i) 痕量极谱法氧气传感器
| 市场 /应用 | 酿造应用中的消毒/卫生过程 |
| 精度 | 1 % + 1 ppb 1 % + 3 ppb |
| 消毒的 | yes |
| 耐高压 | no |
| 液接材质 | stainless steel (AISI316L) with 3.1B certificates |
| 机械耐压 | max. 12 bar (174 psi) absolute |
| 连接器 | VP |
| 检测极限 | 在水溶液中为 1 ppb 至饱和 在含二氧化碳溶液中为 3 ppb 至饱和 |
| ISM | yes |
| ATEX证书 | SEV 14 ATEX 0169 X Ex ia IIC T6/T5/T4/T3 Ga/Gb Ex ia IIIC T69oC/T81oC/T109oC/ T161oC Da/Db |
| IECEx Certificate of Conformity | IECEx SEV 14.0026X Ex ia IIC T6/T5/T4/T3 Ga/Gb Ex ia IIIC T69oC/T81oC/T109oC/ T161oC Da/Db |
| FM批准 | IS/ I， II， III /1 /ABCDEFG /T6 |
| Insertion length | for 12 mm: 70， 120， 220 mm (2.8"， 4.7"， 8.7") |
As with all oxygen sensors from METTLER TOLEDO also the ISM sensors fulfill highest requirements for hygienic design in compliance with EHEDG and 3-A standards. The proven maintenance concept with membrane body and replaceable inner body is continued with all i-type sensors.
Features and Benefits
| Enhanced diagnostics |
|
| Predictive maintenance |
|
| High process safety |
|
| Reduced service time down to just 5 minutes |
|
| Long sensor lifetime |
|
| Installation in hazardous zones |
|
