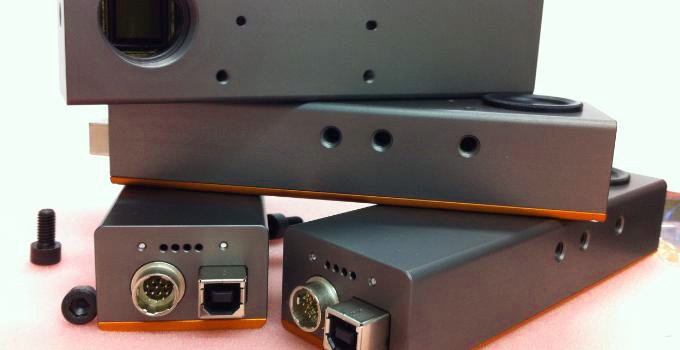

heliCamTM C3 - Fast Lock-In Camera
The lock-in camera was originally developed for low coherence interferometry， but the heliSenseTMS3sensor and the camera board have found new life with a variety of applications other than OCT， for example， pump-probe spectroscopy. For ease of integration， the Heliotis' core technology is now available as a rigid camera， capable of capturing and processing more than 1 million 2D-images per second.
Features
| ||
Software Development Kit The heliCam C3 comes with software drivers and programming examples for
| ||
Specification
| Parameter | Value |
| Detector technology | CMOS 180 nm process with pinned photodiode |
| Die Size | 19.71 mm x 16.89 mm |
| Number of Columns | 300， (center 280 usable， 2x10 columns are test columns) |
| Number of Rows | 300， (center 292 usable， 2x4 rows are test rows) |
| Total number of pixels | 90’000 |
| Column Pitch ΔXpixel | 39.6 μm |
| Row Pitch ΔYpixel | 39.6 μm |
| Photodiode dim. X ΔXphotodiode | 22.2 μm |
| Photodiode dim. Y ΔYphotodiode | 12.7 μm |
| Photodiode area | 282 μm2 |
| Optical fill factor | 18.0 % without micro-lenses |
| Pixel Field Width | 11.9 mm |
| Pixel Field Height | 11.9 mm |
| Max. External Frame Rate | 3.8 kHz (2 x 10bit per frame) |
| Max. Demodulation Frequency | 250 kHz (Equals an internal rate of 1M frames per second) |
| Output Resolution | 10 bit |
| Quantum Efficiency η | 20-60% between 330 and 400 nm 60-80% between 400 and 720 nm 60-20% between 720 and 900 nm |
