General description 概述

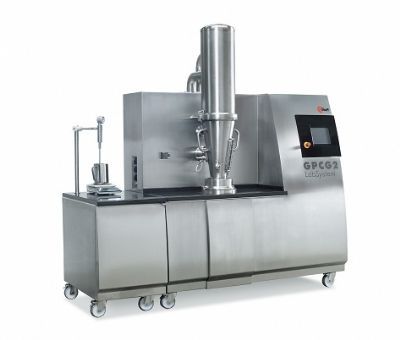

Closed Fluid bed equipment for batch sizes between 0.3 - 5 kg (depending on the inserts)
闭合的流化床设备， 批产量从0.3到5公斤(取决于选购的插入腔体)
The equipment is used for drying and mixing of conventionally produced， free flowing granules， for granulation/agglomeration of powders according to the fluid bed principle.
此设备应用于传统的流化颗粒的干燥和混合， 粉末的制粒/聚合制粒按流化床(选购件配置)的原理.
Technical Date：
| GPCG 2 LabSystem | ||||
| Batch sizes | small | standard | large | |
| Granulating insert | 1-3 l | 2-6 l | 5-12 l | |
| Wurster insert(4''，6''and 7'') | 2 l | 3 l | 5 l | |
| Rotor insert | — | 5 l | — | |
| Elecreical power | Operating voltage | 1×230V and 3×400V | ||
| Frequency | 50Hz | |||
| Total connected load | 3.5/15kw | |||
| Connector | CEE form 3-pin/5-pin | |||
| Compressed air | Max.consumption | 12m3/h | ||
| Pressure | 6bar(g) | |||
| Connection | Hose connection | |||
| Inlet air heater | Max.inlet air temperature | 120℃ | ||
| Dimensions | Height | 2449mm | ||
| Width | 1900mm | |||
| Depth | 1035mm | |||
| Weight | 1200kg | |||
| Spray pump | Max.output | 53ml/min | ||
| Connection voltage | 230V | |||
| Frequency | 50Hz | |||
