FG、QG、JG气流干燥机

直接联系

常州市佳发制粒干燥设备有限公司

常州

产品规格型号
参考报价:

面议

品牌:

常州佳发

关注度:

5714

产品介绍

应用概述 General of applications

★气固两相高度分散状态进行对流干燥达到除去水份的目的。

★Good state of distribution between air and solid phase carries out convective dry in order to remove moisture.


工作原理 Principle of work

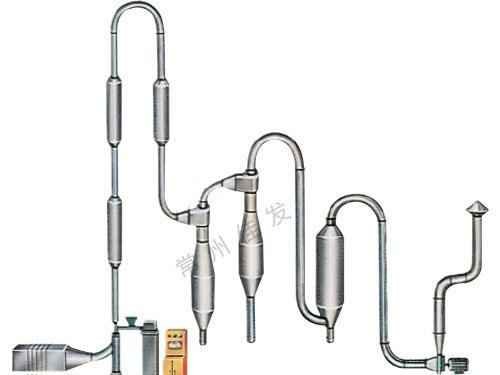

★在旋流干燥器内气流夹带物料从切线方向进入,沿着内壁形成螺旋运动,物料在气流中均匀分布与旋转扰动,强化了干燥过程,凡能用气流干燥的物料,旋流气流干燥器均能适应,特别对憎水性,颗粒小,不怕粉碎和热敏性物料尤为适用。

视物料特性,如粉尘回收可采用脉冲布袋除尘,回收率可达99%。

★Air stream carries raw material to enter the eddying flow air stream drier in the direction of tangent and to form helix movement along with the inner wall. Because raw material distributes uniformly in the air stream and helix with air stream can be dried with the eddying flow air stream drier, particularly it is suitable for raw materials that are hydrophobic behavior, small granule, thermal sensitivity and not afraid of broken.It depends on material,for example,dust recycle can be realized by cloth bag,Its recycle can reach to 99%.


规格ltem 项目Specification

蒸发水份(kg/h)

Evaporated capacity

装机功率(kw)

Total power

占地面积发(m2)

Occupied area

高度(m)

Height

QG50

50

7

20

9

QG100

100

13

32

11

QG200

200

21

40

11

QG250

250

24

64

13

QG500

500

43

96

13

QG1000

1000

100

120

15

QG1500

1500

150

200

16






所有参数仅作参考,视物料情况,本公司拥有变更权利,并不另行通知。

All datas are used for reference only. According to the condition of material, our factory has the right to change but not notice, pardon!
