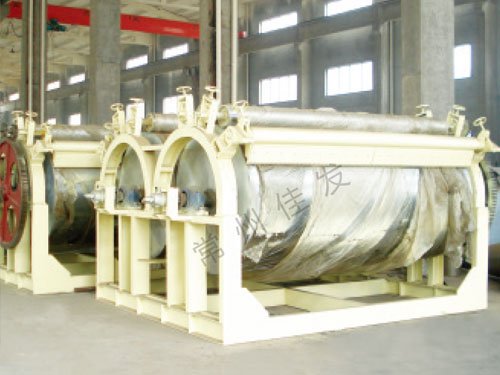

★TG系列滚筒干燥机的工作原理是让液体或泥浆状的物料在水蒸汽其它载体加热的滚筒表面形成薄膜,并在滚筒转一圈的过程中便被干燥 完毕,利用刮刀把产品刮下来,露出滚筒表面再次与原料接触形成薄膜进行干燥.
★TG series cylinder operation principle of desiccator to let liquid or mud form supplies form the Membrane in steam or other hot cylinder sueface that carrier heated,and dry to finish while the cylinder turns around, is it blow handle of a knife product is it get off to blow to utilize, the cylinder surface emerges to contact and form the membrane to carry on with raw materials drily again.
特点 Features
★以蒸汽或导热油为热源,受热面积大,热效率高,加热均匀
★干燥速率大,筒壁上湿料膜的传热与传质过程由里向外方向一致,温度梯度大,使料膜表现保持较高的蒸发强度
★干燥时间短,一般为7-30秒左右,适合热敏性物料。
★操作方便,维修便利
★As heat source, heat area to heavy with steam or heat conduction,High thermal efficiency have, it is even to heat
★it is dry speed the heavy ,tube there is with spreading quality course Material heat transfer of membrane not wet at wall from on direction not outside the unanimous,the temperature gradient is large, make the material membrane display and keep the intensity of higher evapoation
★Dry time is short it is generally about7-30 seconds,suitable for the Temperature sensing supplies.
★Easy to operate,it is convenient to maintain
应用 Applications
★TG系列滚筒干燥机广泛用于食品 化工 医药等行业粘性 膏糊状物料制片 干燥等工序。
★Such processes as the TG series cylinder desiccator is used in such trades as the food, chemical industry, medicine, etc, viscidity, lotion pastel supplies film-making, dry extensively.
规格 Model size | 滚筒尺寸(mm) Sizes of Cylinder Diameter×Length | 有效加热面积(m3) Effective Heating Area | 干燥能力 Drying capacity (kg/h) | 蒸汽耗量 (kg/h) Steam Consumption | 电机功率(kw) Power of Motor | 外形尺寸 (mm) Sizes L×W×H | 重量(kg) Weight |
TG-600 | Ф600×800 | 1.12 | 40-70 | 100-175 | 1.1 | 1700×800×1500 | 850 |
TG-700 | Ф700×1000 | 1.65 | 60-90 | 150-225 | 2.05 | 2100×1000×1800 | 1250 |
TG-800 | Ф800×1200 | 2.26 | 90-130 | 225-325 | 3.75 | 2500×1100×1980 | 1700 |
TG-1000 | Ф1000×1400 | 3.30 | 130-190 | 325-475 | 4.75 | 2700×1300×2250 | 2100 |
TG-1200 | Ф1200×1500 | 4.24 | 160-250 | 400-625 | 4.75 | 2800×1500×2450 | 2600 |
TG-1400 | Ф1400×1600 | 5.28 | 210-310 | 525-775 | 6.25 | 3150×1700×2800 | 3200 |
TG-1600 | Ф1600×1800 | 6.79 | 270-400 | 675-1000 | 6.25 | 3350×1900×3150 | 4200 |
TG-1800 | Ф1800×2000 | 8.48 | 330-500 | 825-1250 | 8.6 | 3600×2050×3500 | 5200 |
TG-1800A | Ф1800×2000 | 10.60 | 420-630 | 1050-1575 | 8.6 | 4100×2050×3500 | 6280 |
所有参数仅作参考,视物料情况,本公司拥有变更权利,并不另行通知。
All datas are used for reference only. According to the condition of material, our factory has the right to change but not notice, pardon!
