卧式真空干燥炉主要用于合金棒材、板材的烧结前期真空干燥,也可用于制药厂、农产品加工厂等干燥，设备采用水循环加热系统。
Horizontal vacuum drying furnace is mainly used for the vacuum drying of alloy
bar/plates before sintering. It can be used in pharmaceutical factories, agricultural product processors as well. Horizontal water circulation heating system is used in the equipment.

1、主要性能说明Main Performance Specification
●采用国际**技术，结构科学合理,性能**,安全系数高,清理方便,易维护,主要由炉体，水冷系统热水循环系统,电气控制等组成。
●炉体采用优质加厚钢板,外部采用新型保温材料,内外间的夹层和炉盖都是水冷壁式。焊接及密封处;均经过严格的压力测试检漏,具有良好的密封性和稳定性。
●热水循环系统由加热器、加热水箱、管道、热水泵及管路阀门等形成循环,使炉体温度均匀、稳定上升。
●温控系统可依据客户需要,进行不同的温控设定,可独立工作也可串联工作控温精度达土5°C,加热输出采用SCR控制,可自动调整,调整范围0-100%。
●系统对超温、断水、水压不足、工艺完成等设有报警器提示，在控制面板上显示操作过程、参数及工艺等进度状态信息。
●Mainly composed of a furnace, water cooling system, hot-water circulation system,and electronic controller, the equipment is designed and manufactured using most up-to-date technology. It has a scientific and rational structure, excellent performance,
high safetyfactors, ease to clean and maintain.
●The body of the furnace is made of thick steel plate, with new thermal insulation materialin the outer surface, and wall-style water cooling in between. The oven cover is also water cooling. Strict pressure testing has been performed against the welding and sealing points, and results of which show that it is leak-proof and highlyreliable.The hot water circulation is formed by a heater, heating water tank, pipeline, hot water pump, and valve, making the oven heated stably and evenly.
●Users can adjust the settings of temperature control system based on specific needs.The system can set to work independently or work in series, with士5°C difference in the actual V.s. pre-defined temperature. Heating output adopts SCR control, and is able to adjust 0%-100% automatically.The machine will give out warning message in conditions of over temperature, water shortage; insufficient water pressure, operation completion, etc. Information like name of operation progress, parameters, and progress will be displayed in the control panel.

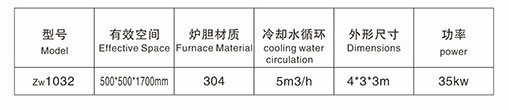

2、主要技术参数Main Technical Parameters
(可依客户特定需求设计制造Customization available)
