组合脉冲系列
面议
元大双璇
组合脉冲系列
865

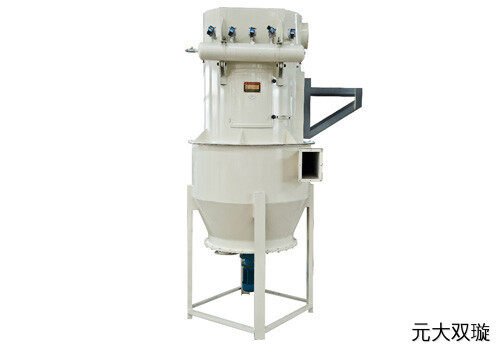

粉碎机组合脉冲系列产品优势:Advantages:
粉碎机组合脉冲系列产品,同时具有旋风分离器和脉冲除尘器的特点。Patented product with the characteristics of cyclone separator and pulse dust collector.
▷切向进料,粉尘旋转分离后进入滤袋,提高滤袋寿命。Tangential feed, the dust enters the filter bag after rotary separation, improving the life of the filter bag.
▷大检修门,更换滤袋方便;平底、锥底两种出灰方式可选。Large access door, convenient to replace filter bag; two ash discharging ways, flat bottom and cone bottom, are optional.
粉碎机组合脉冲系列主要技术参数Main technical parameters
型号model | 过滤面积 Filter area(㎡) | 处理风量 Processing air volume(m³) |
TBLMaZ-21 | 12.36 | 1854.5 |
TBLMaZ-37 | 29 | 4356.75 |
TBLMaZ-52 | 40.8 | 6123 |
TBLMaZ-60 | 47.1 | 7065 |
