WH81F/H
直接联系
上海良大阀门有限公司
面议
WH81F/H
5586
--

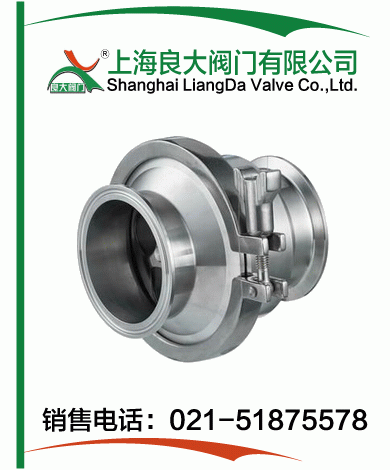

| 产品名称： | 卫生级卡箍式止回阀 |
| 型号： | WH81F/H |
| 口径： | DN15-100 |
| 压力： | 1.6-6.4MPa |
| 材质： | 不锈钢 |
| 卡箍式止回阀/DIN | ||||
| Size | B2 | D | A | |
| DN15 | 87.0 | 34.0 | 102.0 | |
| DN20 | 87.0 | 34.0 | 102.0 | |
| DN25 | 87.0 | 50.5 | 102.0 | |
| DN32 | 87.0 | 50.5 | 102.0 | |
| DN40 | 87.0 | 50.5 | 102.0 | |
| DN50 | 100.0 | 64.0 | 113.4 | |
| DN65 | 115.0 | 91.0 | 122.0 | |
| DN80 | 128.0 | 106.0 | 142.0 | |
| DN100 | 164.0 | 119.0 | 182.0 | |
| 卡箍式止回阀ISO/IDF | ||||
| Size | B2 | D | A | |
| φ25 | 87.0 | 50.5 | 102.0 | |
| φ38 | 87.0 | 50.5 | 102.0 | |
| φ51 | 100.0 | 64.0 | 113.4 | |
| φ63 | 115.0 | 77.5 | 122.0 | |
| φ70 | 128.0 | 91.0 | 142.0 | |
| φ100 | 164.0 | 119.0 | 182.0 | |
| 卡箍式止回阀/SMS | ||||
| Size | B2 | D | A | |
| 25 | 87.0 | 50.5 | 102.0 | |
| 32 | 87.0 | 50.5 | 102.0 | |
| 38 | 87.0 | 50.5 | 102.0 | |
| 51 | 100.0 | 64.0 | 113.4 | |
| 63 | 115.0 | 77.5 | 122.0 | |
| 76 | 128.0 | 91.0 | 142.0 | |
| 89 | 128.0 | 106.0 | 142.0 | |
| 102 | 164.0 | 119.0 | 182.0 | |
| 卡箍式止回阀/3A | ||||
| Size | B2 | D | A | |
| 1/2" | 87.0 | 25.4 | 102.0 | |
| 3/4" | 87.0 | 25.4 | 102.0 | |
| 1" | 87.0 | 50.5 | 102.0 | |
| 1 1/2" | 87.0 | 50.5 | 102.0 | |
| 2" | 100.0 | 54 | 113.4 | |
| 2 1/2" | 115.0 | 77.5 | 122.0 | |
| 3" | 128.0 | 91.0 | 142.0 | |
| 4" | 164.0 | 119.0 | 182.0 | |
