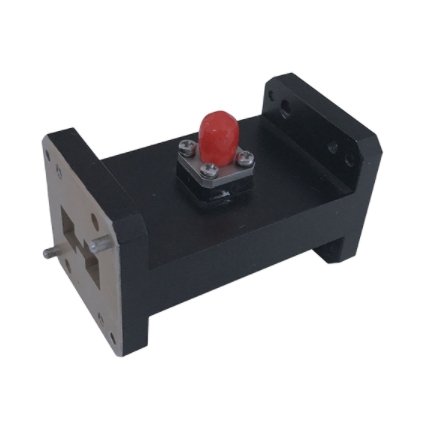

双脊波导环耦合器
229
产品概述
可用于接头类型有N，TNC,BNC,L16,L29,SMA,3.5mm,K-2.92和V-2.4mm等。产品频率范围覆盖0.75-40GHz，标准矩形波导从BJ9到BJ900,全波导带宽内的典型主线驻波VSWR≤1.05,副线驻波≤1.25，耦合度为3-60dB可任选，具有方向性高，VSWR小，频率响应低和全波导带宽等特点。波导高方向性耦合器的基本材料为铜材，铝材，表面处理有镀银，镀金，镀镍，钝化，导电氧化等处理方法。波导耦合器的外形尺寸，法兰，接头类型，材料，表面处理和电气指标要求均可以按用户要求定制。
产品型号 | 波导规格 | 频率(GHz) | 主线驻波 | 副线驻波 | 耦合度 | 方向性 | 耦合度精度 |
LOOP9CXA10N | BJ9(WR975) | 0.75-1.15 | 1.05 | 1.25 | 20-60 | 15 | ±0.75 |
LOOP12CXA10N | BJ12(WR770) | 0.96-1.46 | 1.05 | 1.25 | 20-60 | 15 | ±0.75 |
LOOP14CXA10N | BJ14(WR650) | 1.13-1.73 | 1.05 | 1.25 | 20-60 | 15 | ±0.75 |
LOOP18CXA10N | BJ18(WR510） | 1.45-2.2 | 1.05 | 1.25 | 20-60 | 15 | ±0.75 |
LOOP22CXA10N | BJ22(WR430) | 1.7-2.61 | 1.05 | 1.25 | 20-60 | 15 | ±0.75 |
LOOP26CXA10N | BJ26(WR340) | 2.17-3.3 | 1.05 | 1.25 | 20-60 | 15 | ±0.75 |
LOOP32CXA10N | BJ32(WR284) | 2.6-3.95 | 1.05 | 1.25 | 20-60 | 15 | ±0.75 |
LOOP40CXA10N | BJ40(WR229) | 3.22-4.9 | 1.05 | 1.25 | 20-60 | 15 | ±0.75 |
LOOP48CXA10N | BJ48(WR187) | 3.94-5.99 | 1.05 | 1.25 | 20-60 | 15 | ±0.75 |
LOOP58CXA10N | BJ58(WR159) | 4.64-7.05 | 1.05 | 1.25 | 20-60 | 15 | ±0.75 |
LOOP70CXA10N | BJ70(WR137) | 5.38-8.17 | 1.05 | 1.25 | 20-60 | 15 | ±0.75 |
LOOP84CXA10N | BJ84(WR112) | 6.57-9.99 | 1.05 | 1.25 | 20-60 | 15 | ±0.75 |
LOOP100CXA6N | BJ100(WR90) | 8.2-12.4 | 1.05 | 1.25 | 20-60 | 15 | ±0.75 |
LOOP120CXA6N | BJ120(WR75) | 9.84-15 | 1.05 | 1.25 | 20-60 | 15 | ±0.75 |
LOOP140CXA6N | BJ140(WR62) | 11.9-18 | 1.05 | 1.25 | 20-60 | 15 | ±0.75 |
LOOP180CXA6K | BJ180(WR51) | 14.5-22 | 1.05 | 1.3 | 20-60 | 15 | ±0.75 |
LOOP220CXA6K | BJ220(WR42) | 17.6-26.7 | 1.05 | 1.3 | 20-60 | 15 | ±1 |
LOOP260CXA6K | BJ260(WR34) | 21.7-33 | 1.05 | 1.3 | 20-60 | 15 | ±1 |
LOOP320CXA6K | BJ320(WR28) | 26.5-40 | 1.05 | 1.3 | 20-60 | 15 | ±1 |
LOOPWRD840CXA16S | WRD840U24 | 0.84-2 | 1.1 | 1.35 | 20-60 | 12 | ±1.5 |
LOOPWRD200CXA16S | WRD200D24 | 2-4.8 | 1.1 | 1.35 | 20-60 | 12 | ±1.5 |
LOOPWRD250CXA16S | WRD250D30 | 2.5-8 | 1.1 | 1.35 | 20-60 | 12 | ±1.5 |
LOOPWRD350CXA16S | WRD350D24 | 3.5-8.2 | 1.1 | 1.35 | 20-60 | 12 | ±1.5 |
LOOPWRD475CXA16S | WRD475D24 | 4.75-11 | 1.1 | 1.35 | 20-60 | 12 | ±1.5 |
LOOPWRD500CXA16S | WRD500D36 | 4.5-18 | 1.1 | 1.35 | 20-60 | 12 | ±1.5 |
LOOPWRD580CXA16S | WRD580D28 | 5.8-16 | 1.1 | 1.35 | 20-60 | 12 | ±1.5 |
LOOPWRD650CXA16S | WRD650D28 | 6.5-18 | 1.1 | 1.35 | 20-60 | 12 | ±1.5 |
LOOPWRD750CXA16S | WRD750D24 | 7.5-18 | 1.1 | 1.35 | 20-60 | 12 | ±1.5 |
LOOPWRD180CXA16S | WRD180C24 | 18-40 | 1.1 | 1.35 | 20-60 | 12 | ±1.5 |
