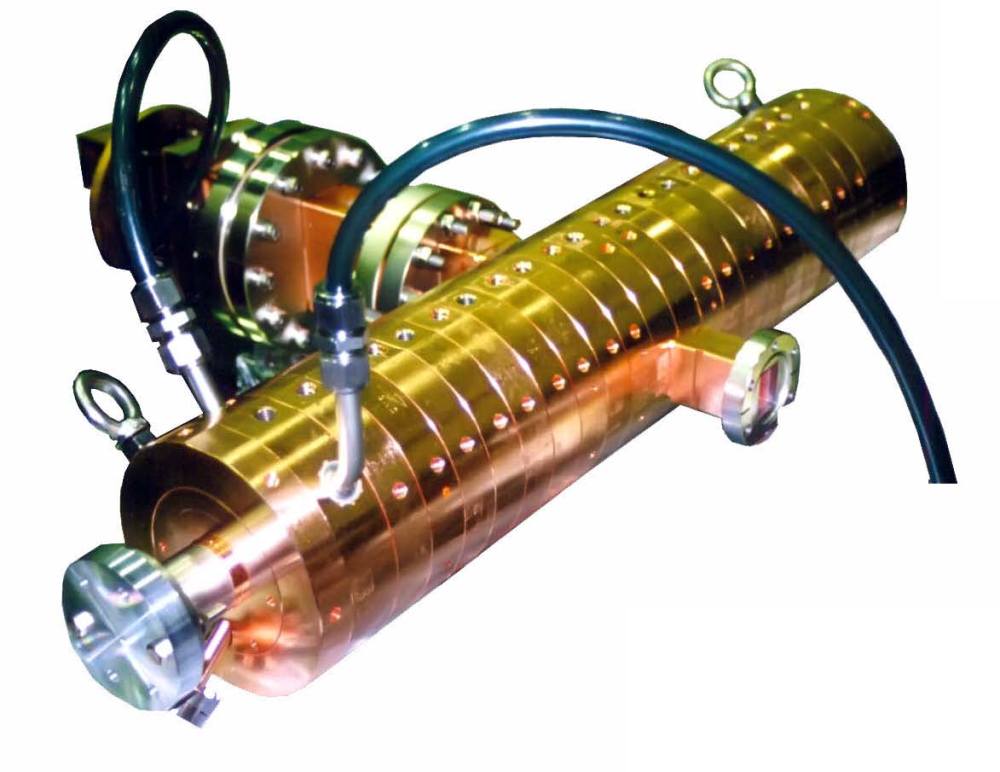

S波段电子直线加速器
| 2MeV S-Band Linear Accelerator | 6MeV S-Band Linear Accelerator | 10MeV S-Band Linear Accelerator | 10MeV S-Band Linear Accelerator | |
| Structure | Side Coupled Standing Wave | On-Axis Coupled Standing Wave | ||
| Material | OFHC | |||
Length | 15cm | 40cm | 70cm | 150cm |
| Frequency | 2856MHz | 2856±0.1MHz | 2856±0.1MHz | |
| Qo | 14，500 | 14，200 | 14，300 | |
| Shunt impedance | 90MΩ/m | 130MΩ/m | 60MΩ/m | 70MΩ/m |
| Beam Energy | 2MeV@2KW | 6MeV@2.5KW | 10MeV@5KW | 10MeV |
| Beam Current | 500mA | 100mA | 150mA | 100mA |
